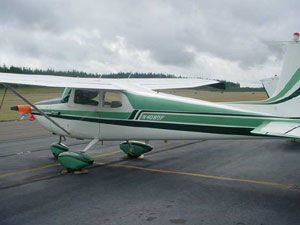

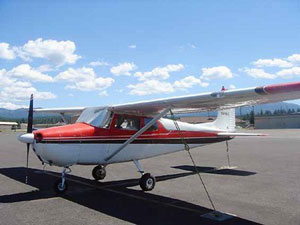

| Cessna 172 -
1958 |
|
Performance - Specifications |
Speed:
Maximum
Cruise
Vne (Never Exceed Speed)
Vno (Max. Structural Cruising) |
131 MPH
125 MPH / 491 SM / 3.9 HRS
160 MPH
|
Do Not
Use This Information For Flight Planning
|
| Rate
of Climb at Sea Level: |
660 FPM |
|
Service Ceiling: |
15,100 Feet |
Takeoff Performance:
Ground Roll
Total Dist. over 50-FT Obstacle |
725 Feet
1650 Feet |
Landing Performance:
Ground Roll
Total Dist. over 50-FT Obstacle |
680 Feet
1115 Feet |
Stall
Speed (KCAS):
Flaps Up, Power Off
Flaps Down, Power Off |
58 MPH
52 MPH |
|
Gross Weight: |
2200 Pounds |
|
Standard Empty Weight: |
1290 Pounds |
| Useful
Load: |
910 Pounds |
|
Baggage Allowance: |
120 Pounds |
| Wing
Loading: |
12.6 Pounds/Sq.Ft. |
| Power
Loading: |
15.1 Pounds/HP |
| Fuel
Capacity (Total): |
39 Gallons |
| Oil
Capacity: |
8 Quarts |
|
Engine: |
Avco Lycoming O-320-E2D / 150 BHP at 2700
RPM |
|
Propeller: |
76 Inch (diameter) / Fixed Pitch |
|
Electrical System: |
14-volt with Generator |
|
Wingspan: |
36 Feet |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
