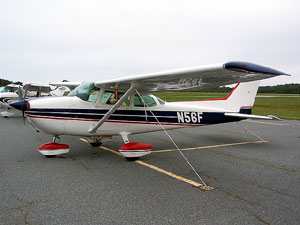

Cessna 172M - 1975 |
|
Performance - Specifications
|
Speed:
Maximum at Sea Level
Cruise, 75% Power at 8000 Feet
Vne (Never Exceed Speed)
Vno (Max. Structural Cruising) |
142 MPH (172) / 144 MPH (Skyhawk)
138 MPH (Skyhawk)
182 MPH
145 MPH |
|
Cruise: |
|
75% Power at 8000 Feet (Skyhawk)
38 Gallons Usable Fuel
48 Gallons Usable Fuel
|
Range: 640 SM / Time: 4.7 HRS / 138 MPH
Range: 815 SM / Time: 5.9 HRS / 138 MPH |
Max. Range at 10,000 Feet (Skyhawk)
38 Gallons Usable Fuel
48 Gallons Usable Fuel
|
Range: 700 SM / Time: 6.0 HRS / 117 MPH
Range: 875 SM / Time: 7.5 HRS / 117 MPH |
|
Rate of Climb at Sea Level: |
645 FPM |
|
Service Ceiling: |
13,100 Feet |
Takeoff Performance:
Ground Roll
Total Dist. over 50-FT Obstacle |
865 Feet
1525 Feet |
Landing Performance:
Ground Roll
Total Dist. over 50-FT Obstacle |
520 Feet
1250 Feet |
Stall Speed (KCAS):
Flaps Up, Power Off
Flaps Down, Power Off |
57 MPH
49 MPH |
|
Gross Weight: |
2300 Pounds |
Standard Empty Weight:
Model 172
Skyhawk
Skyhawk II |
1305 Pounds
1350 Pounds
1375 Pounds |
Maximum Useful Load:
Model 172
Skyhawk
Skyhawk II |
995 Pounds
950 Pounds
925 Pounds |
|
Baggage Allowance: |
120 Pounds |
|
Wing Loading: |
13.2 Pounds/Sq.Ft. |
|
Power Loading: |
15.3 Pounds/HP |
Fuel Capacity (Total):
Standard Tanks
Long Range Tanks
|
42 Gallons / 38 Gallons useable
52 Gallons / 48 Gallons useable |
|
Oil Capacity: |
8 Quarts
|
|
Engine: |
Lycoming O-320-E2D / 150 BHP at 2700 RPM |
|
Propeller: |
75 Inch (diameter) / Fixed Pitch |
|
Electrical System: |
14-Volt with Alternator; Avionics Master Switch |
|
Wingspan: |
35' 10" |
